atlas weightlifter gym cnc file: Greek God Weightlifting Wood Wall Art

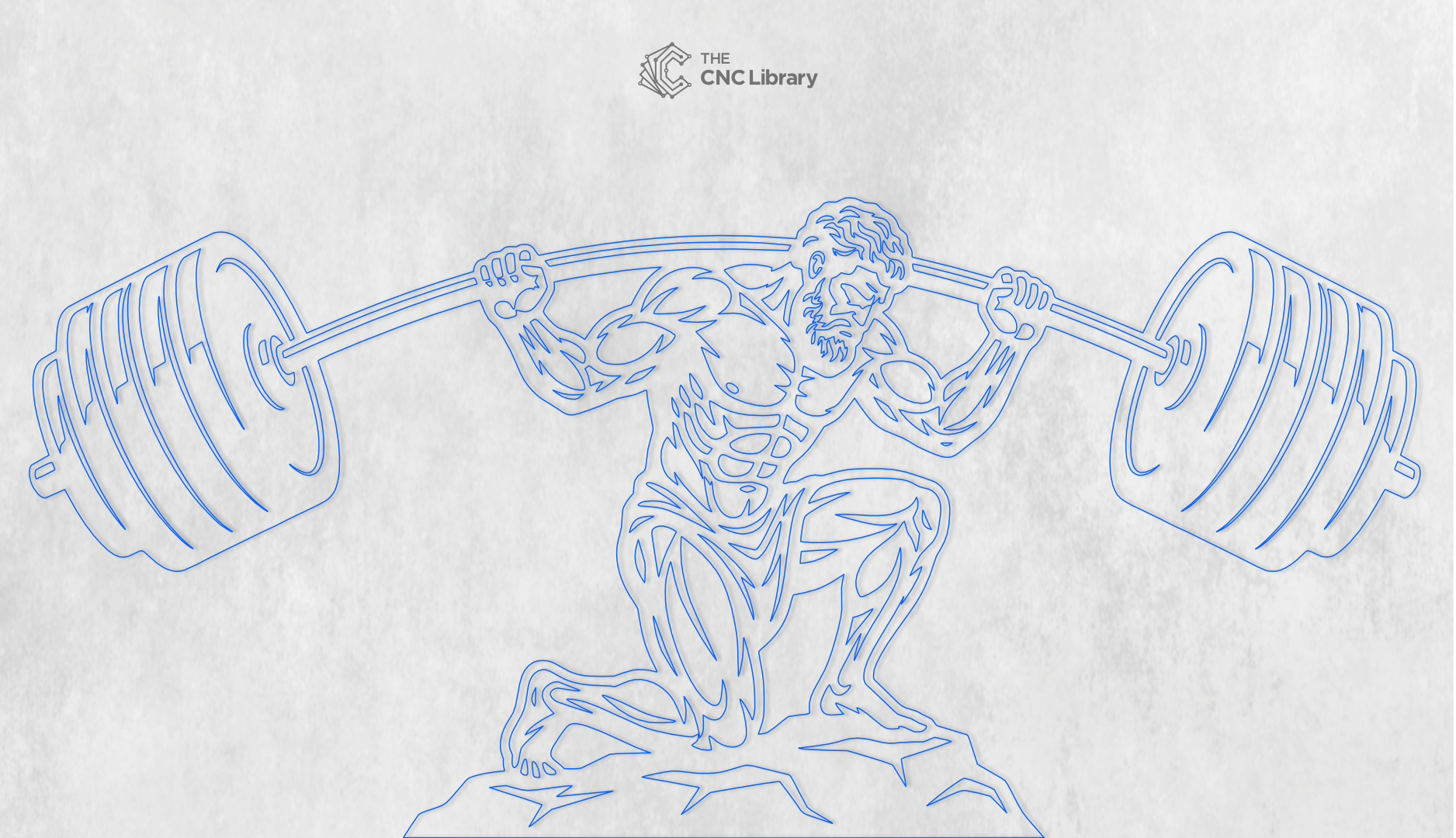

Fuel your passion for fitness and classical mythology with our high-definition atlas weightlifter gym cnc file. Specially created for digital fabricators, professional woodworkers, and laser crafting businesses across North America and Europe, this powerful artwork depicts the mythical Titan Atlas kneeling under an immense bending barbell loaded with bumper plates. Featuring bold typography with the words “STRENGTH” on one side and “DETERMINATION” on the other, this vector template serves as the ultimate inspirational centerpiece for commercial fitness centers, powerlifting gyms, CrossFit boxes, or private home training studios.

Key Features & Vector Optimization

• Fully Closed Vector Geometry: Engineered with 100% closed polylines, preventing accidental spindle pauses, burning, or broken toolpath errors during machining.

• Balanced Node Density: Formatted with smooth bezier curves and optimized node placement to ensure fluid machine motion and high-speed execution in CAM controllers.

• Intricate Muscle & Lettering Detail: Anatomical contour lines and clean plate lettering are formatted for high visibility whether executed as shallow V-carvings, laser scoring, or layered cutouts.

• Kerf & Tool Offset Friendly: Designed with proper spacing tolerances so operators can apply tool offsets, pocketing clearing passes, or laser kerf compensation effortlessly.

• Wide-Format Scalability: Vector lines retain perfect fidelity when scaled from a 16-inch motivational plaque to a massive 72-inch gym lobby statement piece.

Recommended Materials & Thickness Guidelines

This digital template accommodates a wide variety of fabrication materials based on your shop equipment and production goals:

• Baltic Birch Plywood & MDF (Popular Choice): 3mm (1/8″), 6mm (1/4″), or 12mm (1/2″) sheets. Ideal for precise laser cutting, multi-layer stacking, or spray painted finishes.

• Solid Hardwoods: Premium Walnut, Cherry, Hard Maple, or White Oak (1/2″ to 3/4″ depth). Dark walnut tones highlight the muscular definition and give a rustic luxury aesthetic.

• Acrylic & Composite Materials: High-contrast black or gold acrylic sheets for a sleek modern commercial gym aesthetic.

• Sheet Metal / Plasma & Fiber Laser: 14-gauge to 10-gauge mild steel or aluminum for industrial gym installations and weather-resistant outdoor displays.

Production & Finishing Inspiration

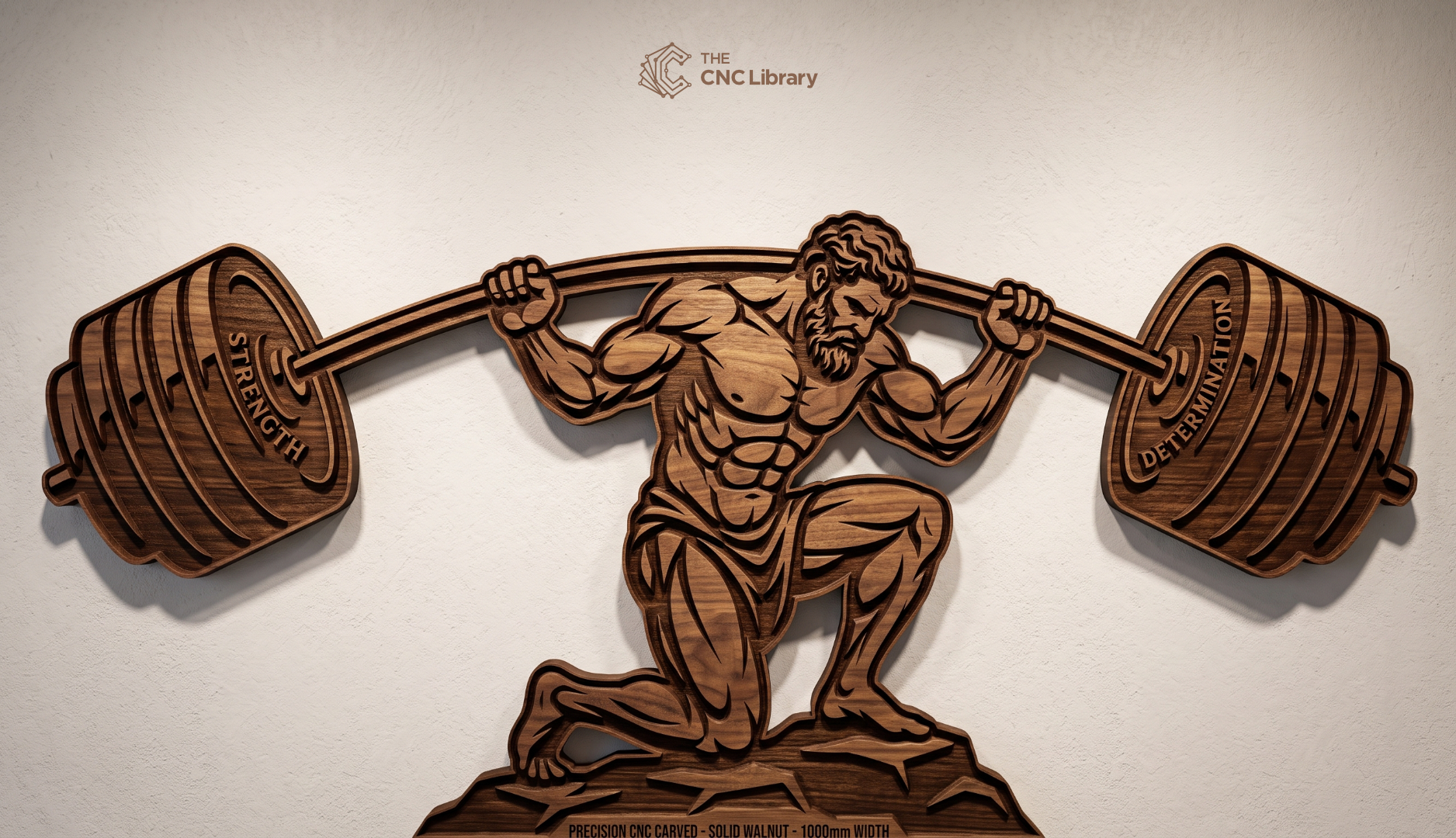

• Two-Tone Dark Walnut & Maple Finish: CNC route the main Atlas figure and barbell from dark walnut wood, then mount it against a contrasting light maple or white oak background panel to make the silhouette stand out.

• Gold Leaf Lettering & Bumper Plate Details: Apply metallic gold leaf or high-contrast brass paint inside the engraved “STRENGTH” and “DETERMINATION” lettering to create an eye-catching focal point.

• Multi-Layered 3D Relief Display: Cut the background rock base, Atlas figure, and outer barbell weights on separate material thickness layers, stacking them to generate true depth and dynamic shadows.

• LED Backlit Gym Focal Point: Mount the finished piece on standoff mounting hardware against a dark gym wall and install ambient backlighting around the perimeter for a dramatic illuminated effect during workouts.

Machine Compatibility & Included File Formats

Our vector packages are thoroughly verified across major CAD/CAM programs and cutting machines to ensure complete out-of-the-box performance.

Included File Formats in the Zip Package:

1. SVG (Scalable Vector Graphics): Optimized for LightBurn, Inkscape, Adobe Illustrator, Cricut Design Space, and Silhouette Studio.

2. DXF (Drawing Exchange Format): Formatted specifically for AutoCAD, Vectric VCarve / Aspire, Fusion 360, SheetCAM, and standard CNC control software.

3. EPS (Encapsulated PostScript): Compatible with CorelDRAW, Roland, and commercial vinyl/sign-making plotters.

4. PDF (Vector Document): Vector blueprint format for client presentations, printing, or manual scroll saw template tracing.

Compatible Machines:

• CNC Routers: Shapeoko, X-Carve, Avid CNC, Laguna, Axiom, Carbide 3D, Camaster, and custom shop routers.

• Laser Cutters: CO2 Lasers (Glowforge, OMTech, Thunder Laser, Boss Laser, Aeon), Diode Lasers (xTool D1/S1, Atomstack), and Fiber Lasers.

• Plasma Cutters: Torchmate, Langmuir Systems, and custom CNC plasma tables.

Step-by-Step Cutting & CAM Setup Guide

1. Import & Scale: Open your preferred CAM program (e.g., Vectric VCarve Pro, LightBurn, Fusion 360) and import the SVG or DXF vector file. Scale the vector to match your stock dimensions.

2. Assign Toolpaths:

   • For CNC Routing: Select a 60° or 90° V-bit for internal muscle line detail and letter carving (“STRENGTH” & “DETERMINATION”). Use a 1/8″ (3.175mm) downcut endmill for the outer perimeter profile path.

   • For Laser Cutting: Set inner muscle details and plate lettering as high-speed vector scores or vector engravings, and set outer boundaries as a full profile cut pass.

3. Set Speeds & Feeds: Adjust spindle RPM, feed rate, and plunge depth according to your specific router bit specifications and material density.

4. Workpiece Securing: Clamp your material firmly or utilize a vacuum table/painter’s tape and superglue method to prevent movement during high-detail passes.

5. Post-Processing & Finishing: Sand edges lightly with 220-grit sandpaper, apply protective oil or polyurethane finish, and assemble mounting hardware.

Commercial License & Terms of Use

• Commercial Production Allowed: Purchase of this file includes a Small Business Commercial License. You are fully permitted to cut, manufacture, and sell physical products made from this vector file (up to 500 physical units).

• Digital Copyright Protection: You MAY NOT sell, sub-license, share, redistribute, or upload the digital vector files (SVG, DXF, EPS, PDF) or any modified derivative to any online marketplace, cloud folder, or social media group.

• Instant Digital Product: This listing is for a digital download file only. No physical wooden product or metal sign will be shipped to your address.
