3D Botanical Caduceus Medical Symbol Wall Art CNC & Laser Cut File

Harness Healing & Growth with the botanical caduceus cnc file

The botanical caduceus cnc file represents a modern, organic reimagining of healthcare’s most recognized symbol. Bridging clinical medicine, holistic therapy, herbalism, and nature’s vitality, this design replaces traditional serpent wings with a sweeping canopy of botanical leaves and transforms the caduceus rod into a deeply rooted trunk. Intertwining vines with delicate leaf shoots spiral upward along the central staff, grounded securely by an organic root system.

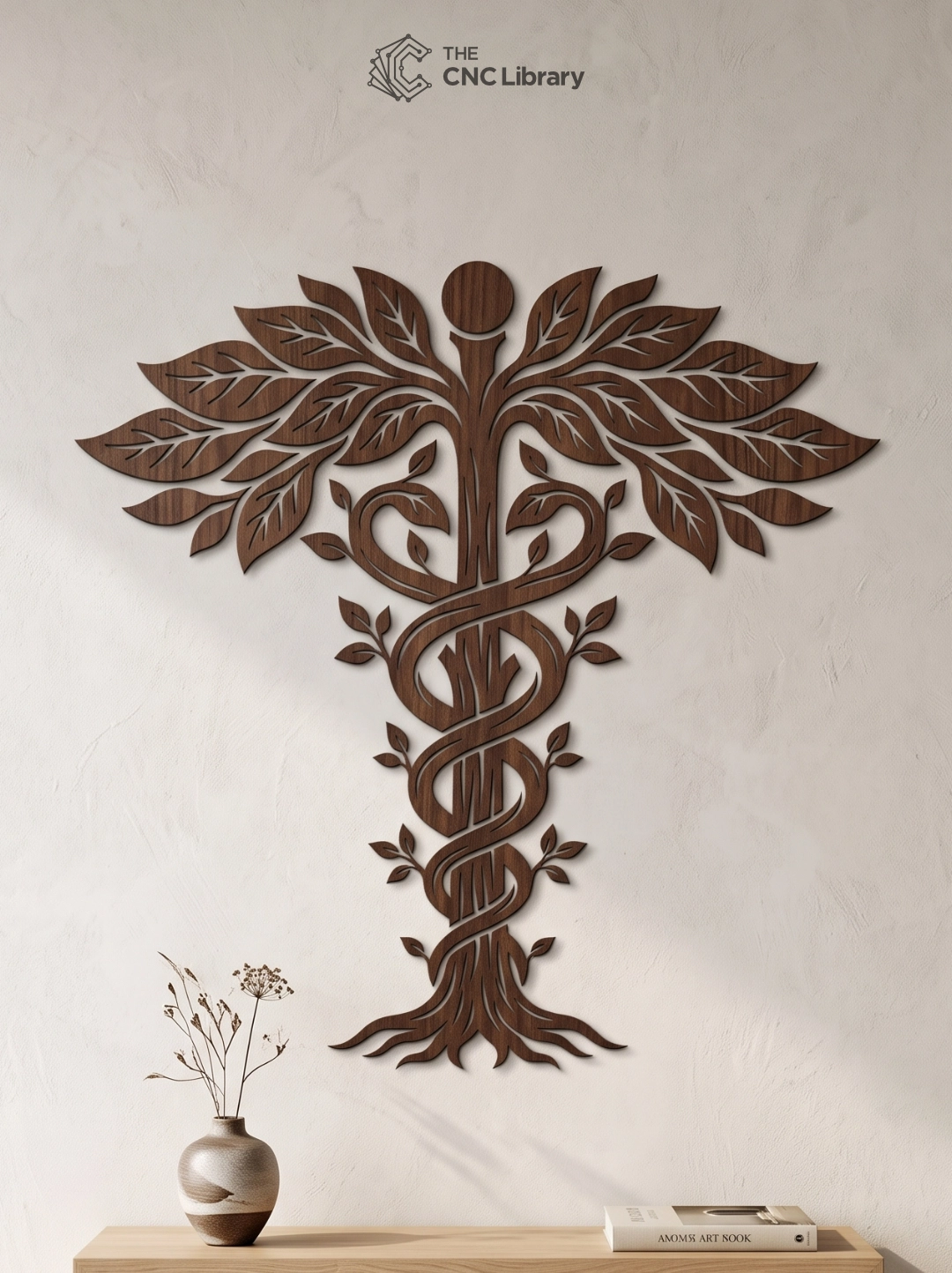

Whether cut from matte-black steel for a modern medical pavilion or routed from rich hardwood for a holistic wellness center, this vector artwork turns healthcare spaces into inviting, life-affirming environments. Perfect for doctor offices, physical therapy clinics, wellness spas, apothecary shops, and medical graduation gifts.

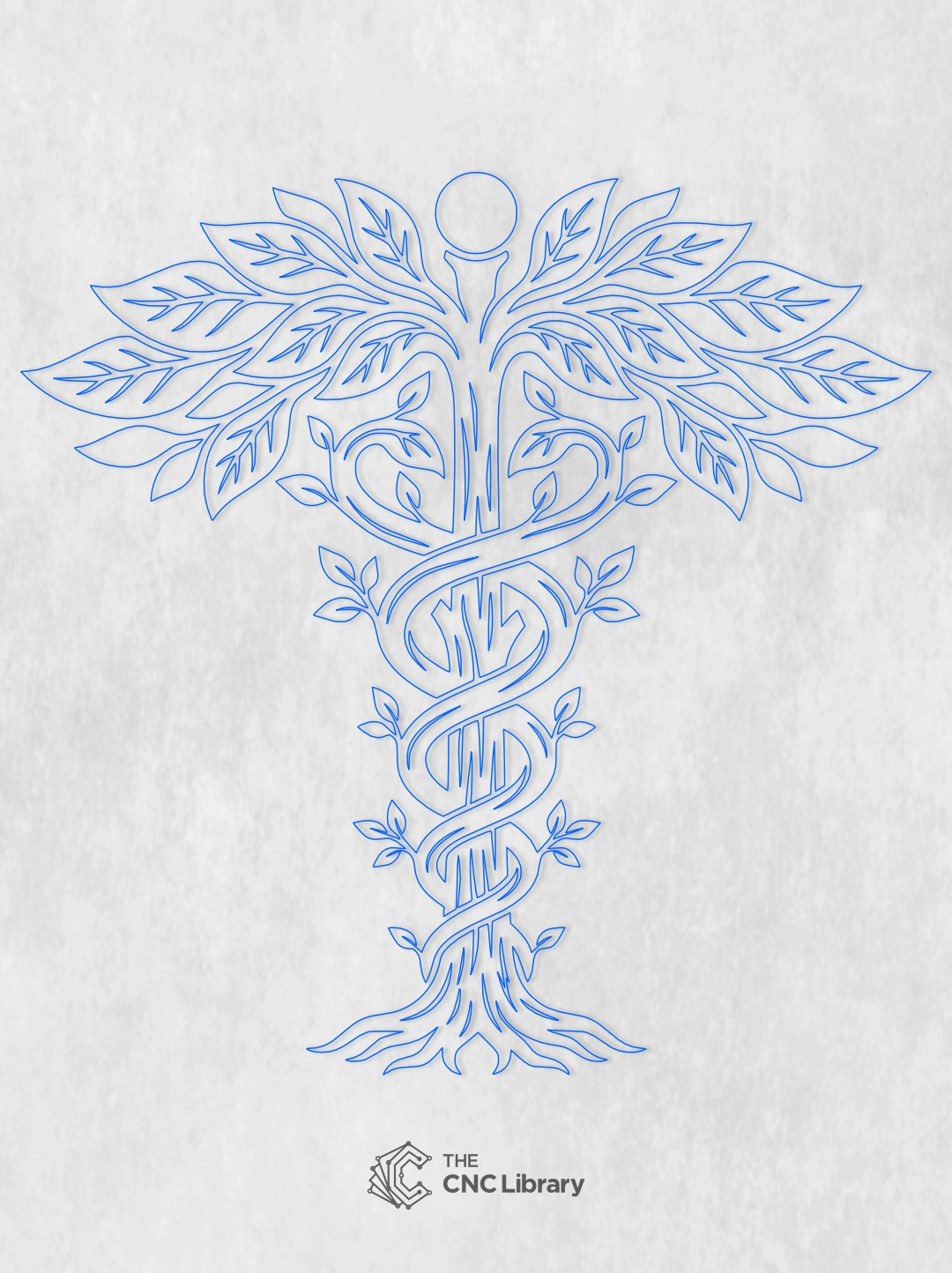

Precision Vector Engineering & Cut Line Integrity

Engineered specifically for automated laser cutters, CNC routers, and metal plasma torches, this botanical caduceus cnc file guarantees efficient production and smooth machining passes:

• 100% Closed Vector Paths: All leaf borders, internal vein slots, trunk contours, and root strands are formatted as complete closed loops to ensure continuous cutting without spindle pauses.

• Optimized Bezier Curve Nodes: Curvilinear elements—such as the curving vines, spiraling shoots, and leaf tips—are smoothed to reduce node counts for rapid machine head acceleration.

• Kerf & Tooling Tolerances: Internal leaf vein cutouts and vine spacings accommodate standard laser kerf offsets as well as 1/8″ (3.175mm) and 1/16″ downcut CNC endmills.

• Single-Piece Structural Interconnection: Every leaf, branch, vine, and root physically bridges into the central trunk, creating a single rigid wall sculpture ready for mounting.

Key Architectural & Artistic Highlights

This design harmonizes clinical heritage with natural elegance:

• Spherical Pommel & Central Staff: Represents the traditional rod of authority and healing topped with a clean circular orb.

• Lush Leaf Canopy: Expansive left and right leaf clusters featuring openwork leaf veins that allow light to pass through.

• Intertwining Organic Vines: Dual spiraling vines with sprouting leaf buds replace standard serpents, symbolizing life, renewal, and growth.

• Spreading Root Base: Intricate root system at the bottom anchors the design visually while providing strong structural mounting support.

Recommended Materials & Workshop Finishing Techniques

This vector template adapts across a wide range of substrates and workshop finishes:

• Matte Black MDF or Plywood: Cut from 1/4″ (6mm) Baltic Birch or HDF, painted in satin black, and mounted against light-colored walls for a sharp silhouette.

• Solid Hardwoods: Route the design from 1/2″ Walnut, Cherry, or Teak, applying a natural oil finish to highlight rich grain patterns in executive medical offices.

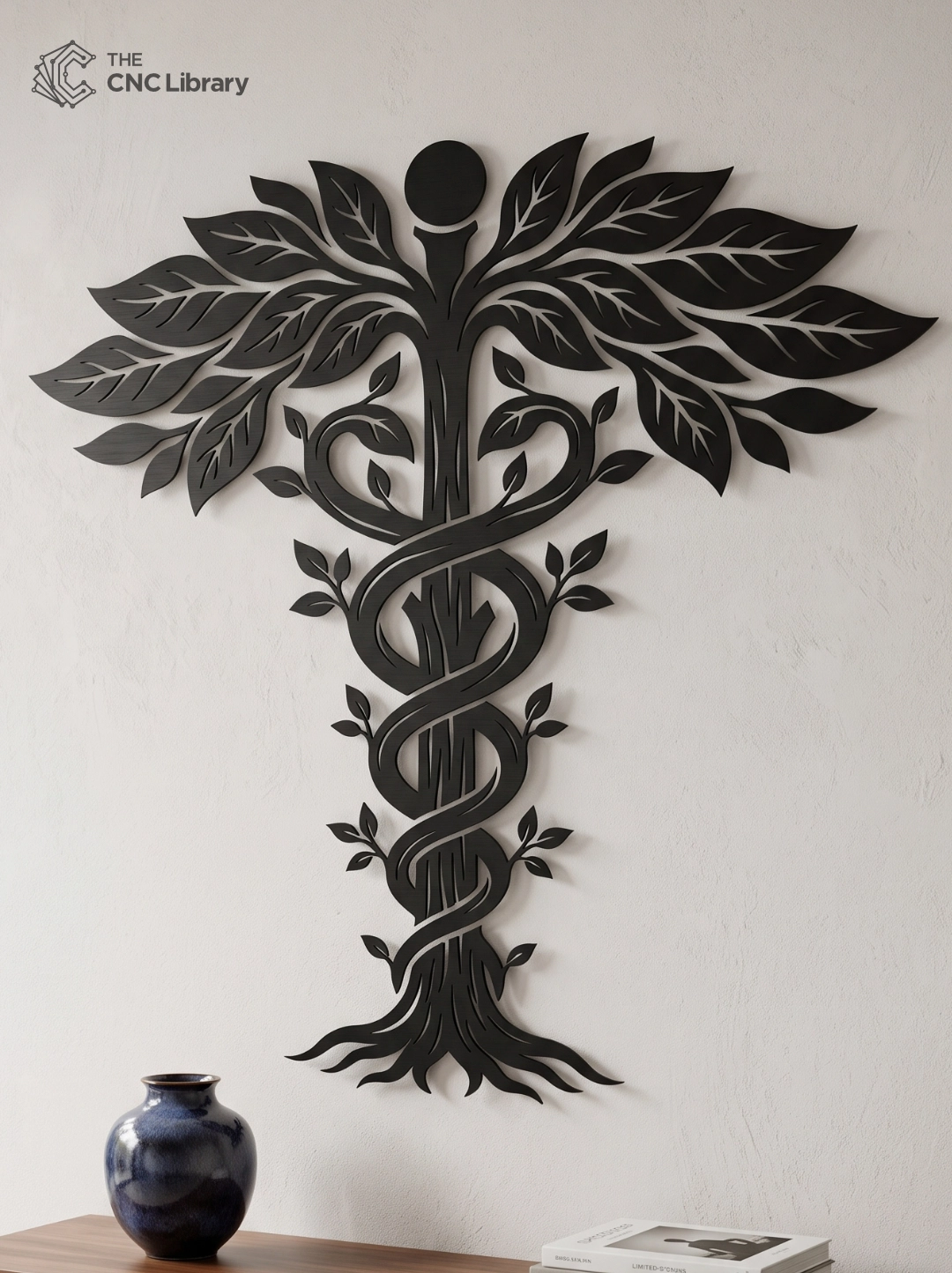

• Steel Plasma & Fiber Laser: Cut from 14-gauge to 11-gauge steel sheet metal, finished with a black powder coat or rubbed bronze patina for heavy-duty metal wall installations.

• Floating Standoff Mounting: Install the finished piece 1/2″ off the wall surface using barrel standoff spacers to project dramatic drop shadows that accentuate the 3D foliage.

Step-by-Step CAM & Workshop Setup Guide

1. Import & Scale: Open your software (LightBurn, Vectric VCarve Pro / Aspire, Fusion 360, Inkscape) and import the SVG or DXF format. Scale the overall height according to your display area (recommended height: 30″ to 60″).

2. Assign Machine Toolpaths:

   • For CNC Routers: Use a 60° V-bit for fine interior leaf vein passes. Use a 1/8″ downcut endmill for interior cutouts and outer root profiles to prevent top veneer tear-out.

   • For Laser Cutters: Assign fine internal leaf vein lines to high-speed vector scoring passes, and outer boundary lines to full-power cutting passes.

3. Configure Feeds & Speeds: Adjust spindle speed and feed rates according to your material density to prevent thermal burning on tight vine curves.

4. Fix Material Stock: Secure sheet stock thoroughly using a vacuum bed, hold-down clamps, or painter’s tape with CA glue to prevent small leaf islands from shifting.

5. Sanding & Finishing: Lightly sand edges with 220-grit sandpaper, apply paint or varnish coat, and attach keyhole mounting hardware.

Machine Compatibility & Included File Formats

The downloadable zip archive contains clean vector formats compatible with all major digital cutting machinery:

• SVG: Optimized for LightBurn, Inkscape, Adobe Illustrator, Cricut Design Space, and xTool Creative Space.

• DXF: Formatted for AutoCAD, Vectric VCarve Pro / Aspire, Fusion 360, and standard CNC controllers.

• EPS: Compatible with CorelDRAW and commercial sign plotters.

• PDF: High-resolution vector blueprint for client previews, printing, or manual scroll saw cutting.

Commercial License & Usage Terms

• Commercial Small Business License: Your purchase includes a license to manufacture and sell up to 500 physical finished products per year at local craft fairs, medical supply outlets, or online storefronts.

• Digital Copyright Protection: You MAY NOT share, resell, sub-license, distribute, or upload the digital vector files (SVG, DXF, EPS, PDF) or any modified derivative files to any cloud repository or public drive.

• Digital Purchase Notice: This product is an instant digital download listing. No physical wooden or metal art piece will be shipped.
