3D Vertical Exploded Burger Wood Wall Art CNC & Laser Cut File

Elevate Kitchen Wall Decor with the vertical exploded burger cnc file

The vertical exploded burger cnc file is an expert-grade digital vector package crafted for manufacturing high-impact, 3D layered wood wall sculptures and commercial culinary signage. Perfect for woodworking artisans, custom sign makers, and laser engraving businesses, this design features a vertically aligned deconstructed burger with individual floating ingredients skewered along a central mounting axis. From the sesame-crusted top bun down to the bottom bun, every component is sculpted with realistic depth, layered relief contours, and detailed surface engravings.

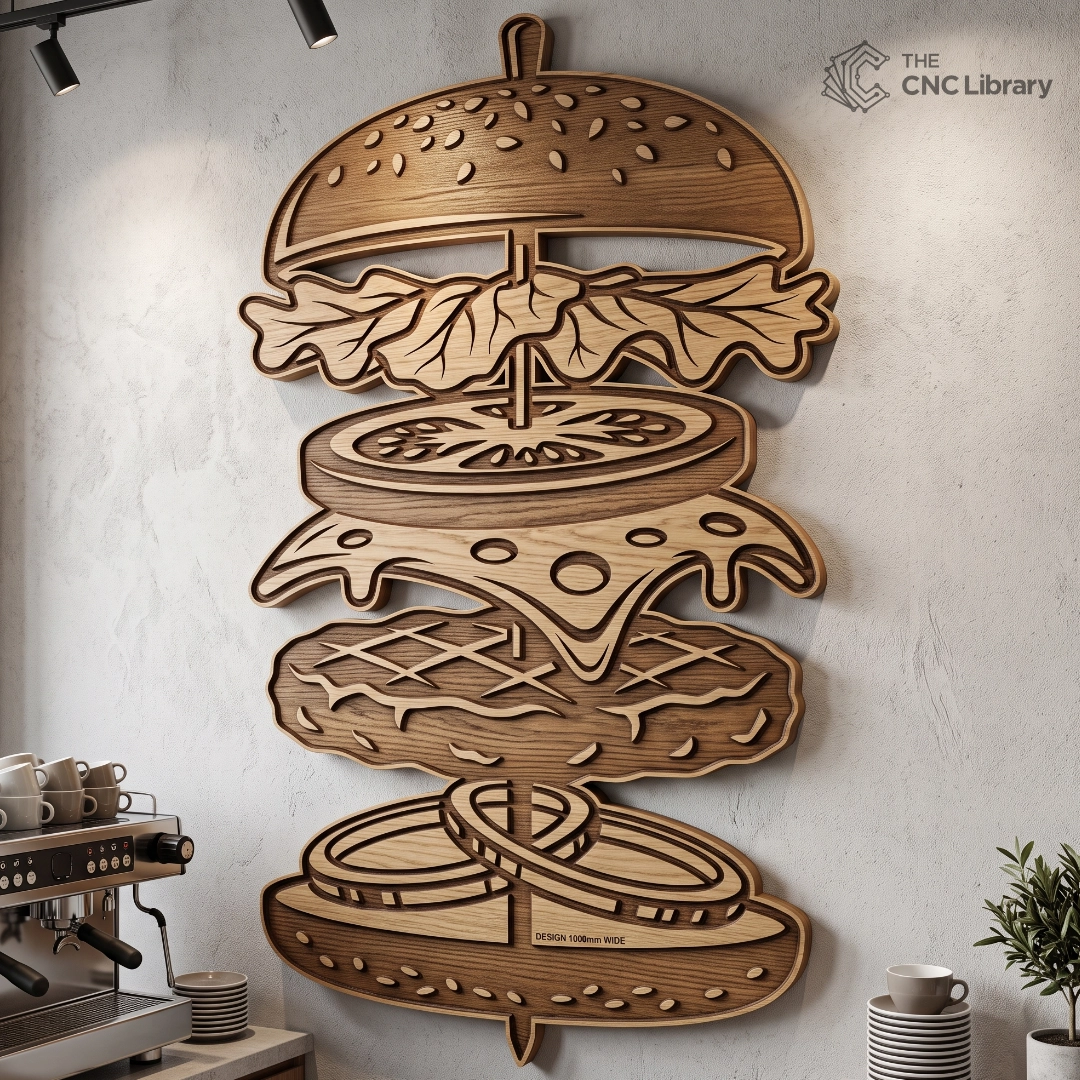

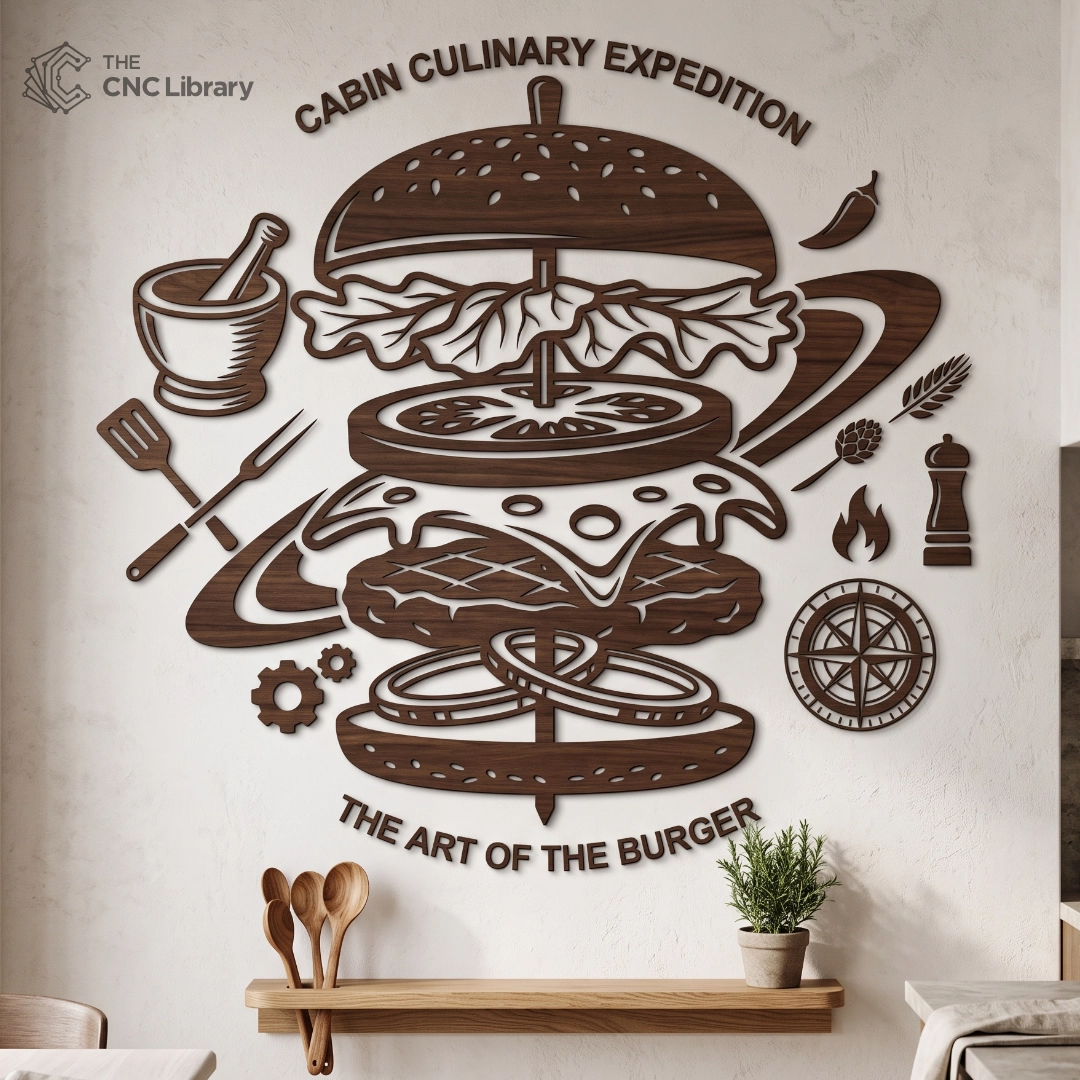

Whether mounted as a standalone 1000mm-tall wood feature in a modern espresso bar or deployed as part of a full culinary wall decal set, this artwork delivers an unmatched focal point for kitchen spaces, burger bistros, and outdoor barbecue patios.

Precision Vector Engineering & Cut Line Integrity

Engineered specifically for automated CNC routing and laser processing, this vertical exploded burger cnc file guarantees error-free execution on your machine:

• 100% Closed Cut Vectors: Formatted with clean, unbroken vector geometry to eliminate toolpath errors, open-node warnings, or mid-cut spindle stalls.

• Smooth Bezier Curves: Optimized node density along complex organic shapes—such as wavy lettuce edges and cheese drips—promotes fluid machine acceleration and reduced cycle times.

• Kerf & Tool Offset Friendly: Precise geometry gap spacing ensures compatibility with standard laser beam kerf allowances and micro CNC endmills (1/16″ and 1/8″).

• Layered Relief Alignment: Designed to be cut from varying wood thicknesses (3mm to 19mm) to construct dramatic physical depth and natural shadow play when illuminated by ambient spotlighting.

Anatomic Breakdown of the Floating Burger Stack

This vector template meticulously breaks down the classic gourmet burger into seven distinct, interconnected layers:

1. Sesame Seed Top Bun: Curved upper crown detailed with laser-engraved seed pockets and smooth perimeter bevels.

2. Crisp Rippled Lettuce Leaf: Deeply contoured outer leaves featuring detailed vein lines and organic wavy edges.

3. Sliced Tomato Layer: Thick cross-section design featuring internal seed cavities and core ring details.

4. Melting Swiss/American Cheese: Generously draped cheese slab featuring signature interior holes and liquid drip tips.

5. Charcoal-Grilled Beef Patty: Textured meat patty highlighted with cross-hatch grill mark engravings and rough edge details.

6. Double Onion Rings: Interlocking circular onion slices suspended beneath the patty.

7. Seeded Bottom Bun: Sturdy base foundation featuring matching lower sesame seed accents and central skewer support anchor.

Recommended Materials & Finishing Techniques

The versatility of this vertical exploded burger cnc file allows creators to experiment with diverse materials and multi-tone wood stains:

• Baltic Birch Plywood & Premium MDF: 3mm (1/8″) or 6mm (1/4″) sheet stock. Excellent for laser cutting crisp edge detail and applying vibrant wood stains.

• Solid Hardwoods: Construct components using contrasting natural hardwoods—Walnut for the grilled patty and top/bottom buns, Hard Maple for the cheese and onion rings, and Cherry for the tomato layer.

• Multi-Tone Stain Separation: Stain individual cut layers prior to assembly (e.g., golden oak for buns, dark walnut for meat, yellow dye for cheese) to produce stunning visual separation.

• Clear Polyurethane Coating: Apply two coats of satin or semi-gloss clear finish to protect the wood grain against grease and moisture in kitchen environments[26].

Step-by-Step CAM & Workshop Assembly Guide

1. Import & Scale: Open your CAD/CAM software (Vectric VCarve Pro/Aspire, LightBurn, Fusion 360, Inkscape) and import the SVG or DXF file. Scale the total height according to your wall space (standard recommended scale: 600mm to 1200mm tall).

2. Assign Machine Toolpaths:

   • CNC Router: Assign a 60° V-bit for internal detail scoring (sesame seeds, grill lines, lettuce veins). Use a 1/8″ (3.175mm) downcut endmill for interior cutouts and perimeter profiles to ensure clean edge faces without top-veneer tear-out.

   • Laser Cutter: Set inner seed and texture lines as high-speed vector engrave/score passes, and perimeters as full-power vector cut passes.

3. Feeds & Speeds Setup: Adjust spindle RPM and feed rates based on your material thickness and bit specifications.

4. Fixation: Secure your wood sheet firmly using a vacuum bed, hold-down clamps, or painter’s tape and CA glue.

5. Sanding & Stacking: Lightly sand pieces with 220-grit sandpaper, apply stain or oil, align component layers using the central spine guide, and bond using wood glue.

Machine Compatibility & Included File Formats

The zip package includes fully tested vector formats compatible with all major digital fabrication equipment:

• SVG: Optimized for LightBurn, Inkscape, Adobe Illustrator, Cricut Design Space, and xTool Creative Space.

• DXF: Formatted for AutoCAD, Vectric VCarve Pro / Aspire, Fusion 360, and standard CNC motion software.

• EPS: Compatible with CorelDRAW, Roland CutStudio, and commercial vinyl plotters.

• PDF: High-resolution vector blueprint for client previews, printing, or manual scroll saw cutting.

Commercial License & Usage Terms

• Commercial Small Business License: Your purchase includes a license to manufacture and sell up to 500 physical finished products per year at craft fairs, local markets, or online e-commerce stores.

• Digital Copyright Protection: You MAY NOT share, resell, sub-license, distribute, or upload the digital vector files (SVG, DXF, EPS, PDF) or any modified derivatives to any digital market, website, or cloud drive.

• Digital Purchase Notice: This product is an instant digital file download only. No physical wooden art piece or material stock will be shipped.
