3D Winged Foot Track & Field Wall Art CNC & Laser Cut File

Embody Speed & Triumph with the winged foot track field cnc file

The winged foot track field cnc file is the ultimate wall art design for runners, track coaches, marathoners, and sports enthusiasts. Drawing inspiration from ancient mythology and modern athletic emblems, this design merges a running shoe complete with tread spikes and lace cutouts with double-tiered feathered wings expanding upward and backward. Below the shoe, streamlined speed waves suggest rapid forward movement across the track surface.

Whether carved as a natural hardwood statement piece or constructed as a striking two-tone layered wood sign with a dark backer plate, this vector artwork delivers dramatic visual appeal. It serves as an ideal decor piece for high school field houses, fitness studios, home gyms, trophies, coaches’ offices, and runner gift shops.

Precision Vector Engineering & Cut Line Integrity

Crafted to meet demanding manufacturing standards, this winged foot track field cnc file offers clean toolpaths and effortless production:

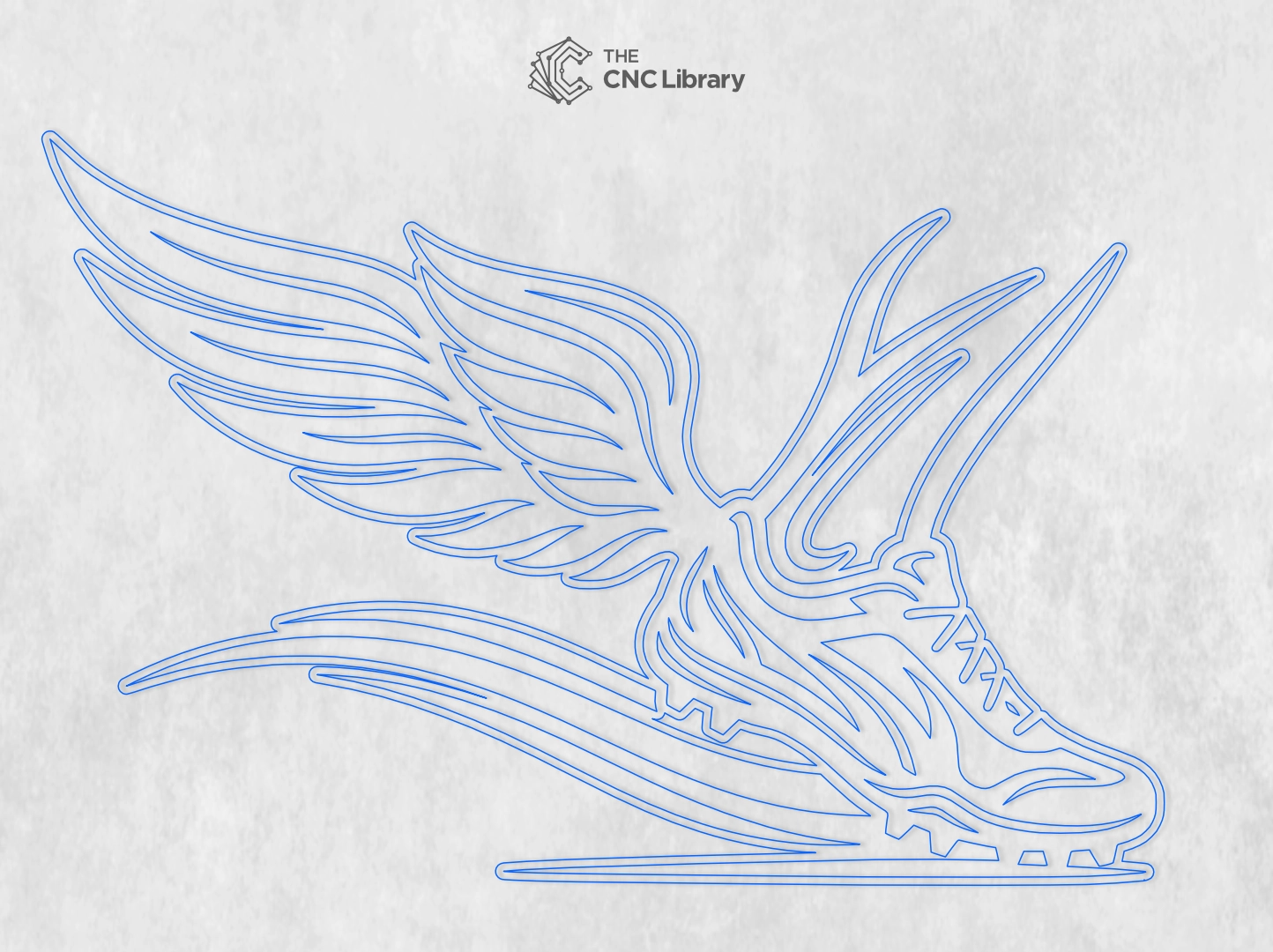

• 100% Closed Vector Geometry: Every feather silhouette, lace cutout, tread spike notch, and speed line contour is formatted as a continuous closed path, eliminating open vectors and spindle errors.

• Optimized Bezier Curve Nodes: Curving feather tips and swooping speed trails are smoothed to maintain high machine speeds without chatter or hesitations during cutting passes.

• Kerf & Tooling Offsets: Internal wing slots and shoe accent cutouts accommodate laser beam kerf as well as standard 1/8″ (3.175mm) and 1/16″ CNC router endmills.

• Versatile Multi-Layer & Single-Piece Construction: Can be cut as a single interconnected silhouette or layered over a solid backer plate for multi-colored contrast.

Key Architectural & Artistic Highlights

This design combines realistic athletic detail with classic symbolic flair:

• Detailed Running Spike & Laces: Accurately detailed running shoe upper featuring lace eyelets, outsole lugs/spikes, and ankle collar lines.

• Sweeping Feathered Wings: Two distinct layers of wings springing from the midfoot and heel, with stylized feather slots that cast bold shadows when wall-mounted.

• Hydrodynamic Speed Trails: Parallel swooping lines beneath the sole represent ground contact, acceleration, and wind velocity.

• Balanced Mounting Base: A subtle horizontal ground bar integrated at the bottom offers stability for standing displays or simple wall hanging alignments.

Recommended Materials & Workshop Finishing Techniques

Adapt this cut file across various workshop mediums to suit any setting:

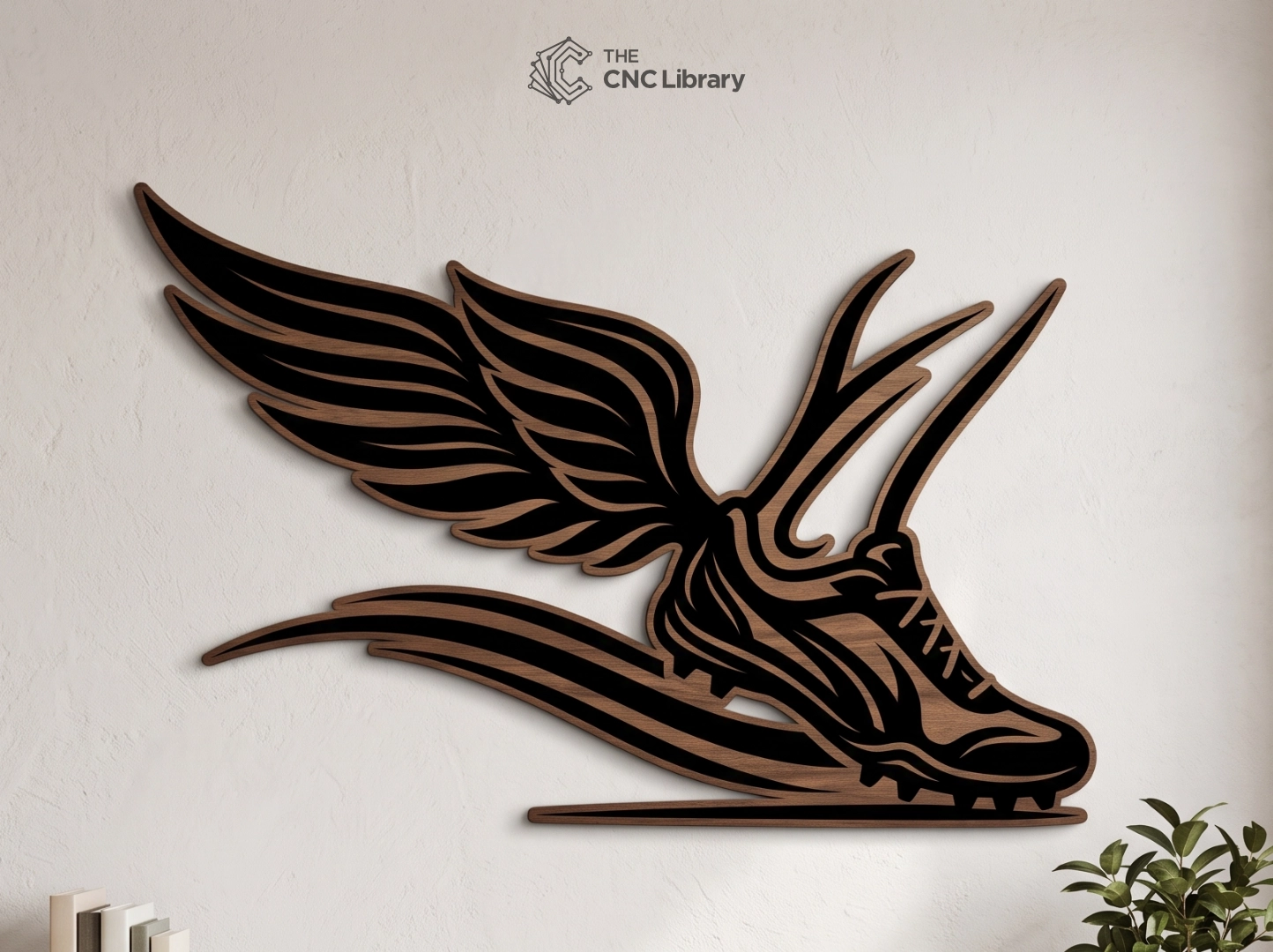

• Two-Tone Layered Wood: Laser cut the detailed top winged shoe layer from 1/4″ Walnut or Cherry plywood, and mount it over a satin-black painted MDF backer sheet to create deep high-contrast visuals.

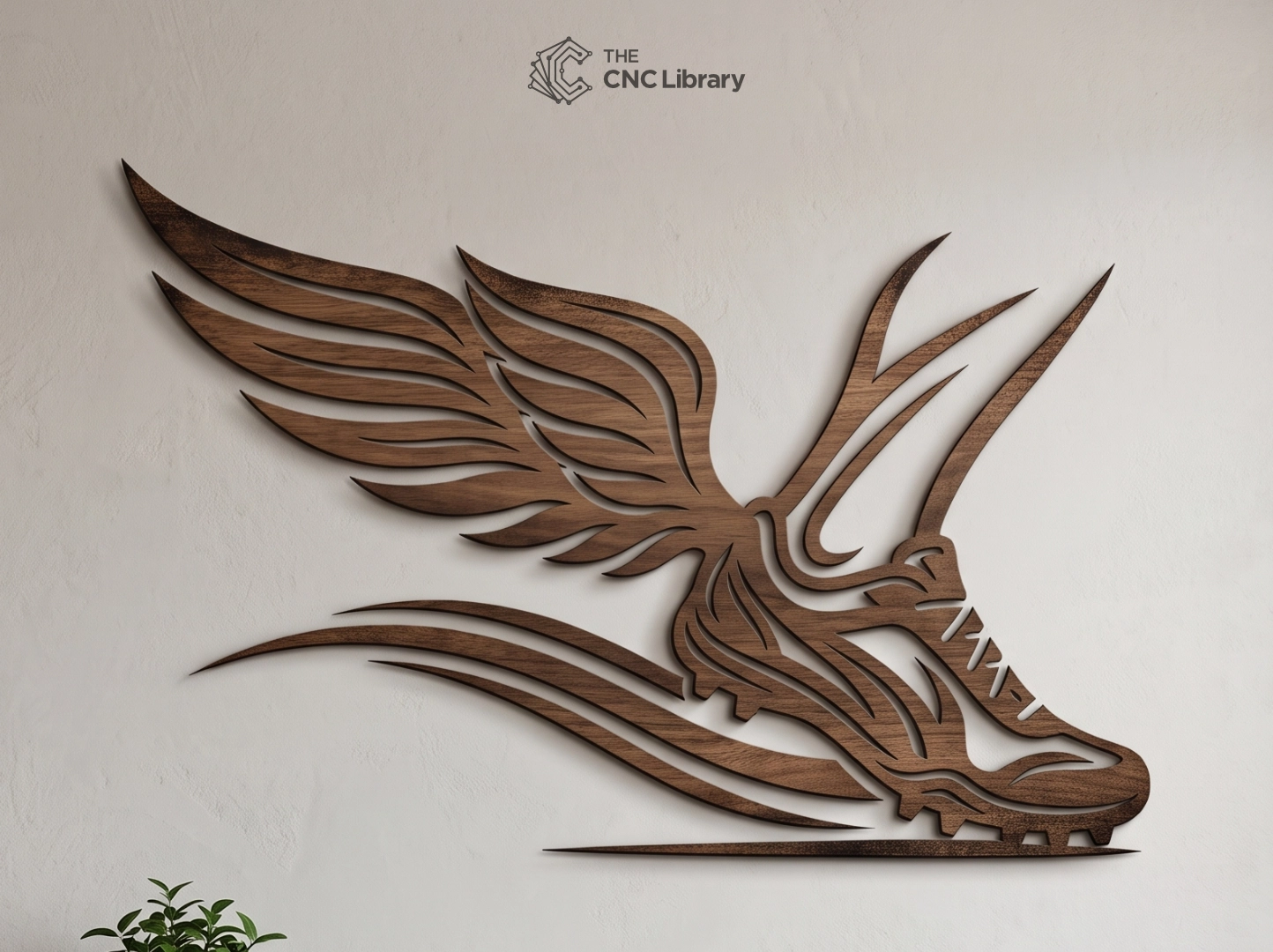

• Single-Piece Hardwood CNC Router Cutout: Route the full silhouette out of 1/2″ or 3/4″ solid Walnut or Oak, apply a clear tung oil or polyurethane finish to highlight natural wood grains.

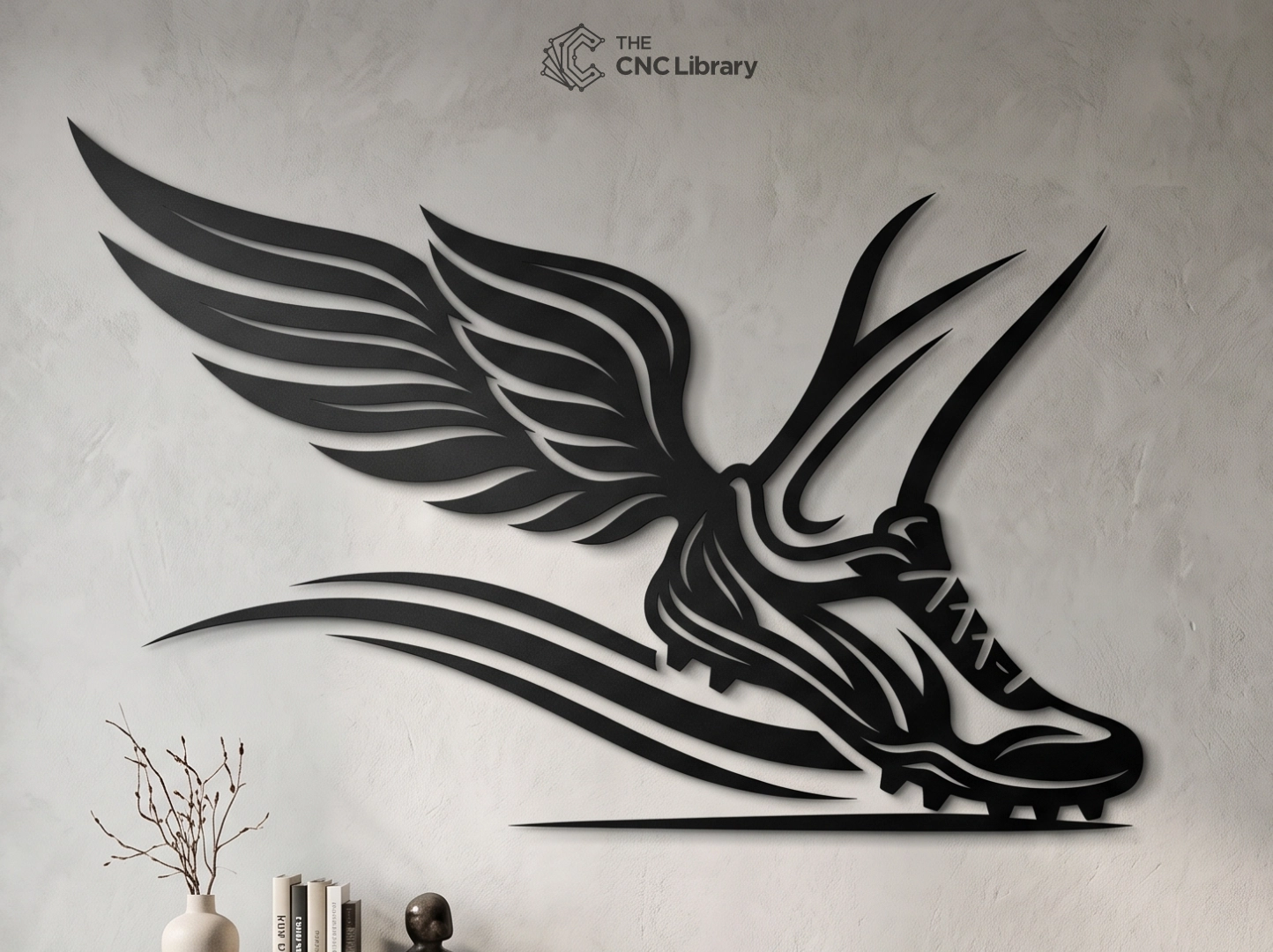

• Metal Plasma & Fiber Laser: Cut from 14-gauge or 11-gauge steel plate, finished in powder-coated matte black, metallic bronze, or brushed aluminum for outdoor athletic facilities.

• Standoff Wall Display: Use 1/2″ barrel standoff screws to mount the piece off the wall, allowing ambient lighting to project realistic shadow wings onto the wall surface.

Step-by-Step CAM & Workshop Setup Guide

1. Import & Scale: Open your software (LightBurn, Vectric VCarve Pro / Aspire, Fusion 360, Inkscape, or CorelDRAW) and import the SVG or DXF format. Scale to your target dimensions (recommended width: 24″ to 48″).

2. Assign Machine Toolpaths:

   • For CNC Routers: Use a 60° or 90° V-bit for fine shoe accent lines and feather details. Use a 1/8″ downcut spiral endmill for profile cutouts to leave clean edges without top-veneer tearing.

   • For Laser Cutters: Assign internal lace and feather cutouts to full cut passes, or score them on a lower power setting for quick single-plate engraving.

3. Configure Feeds & Speeds: Set appropriate feed rates for your spindle RPM and material density to avoid wood charring along tight feather tips.

4. Fix Material Stock: Secure stock firmly using a vacuum table, hold-down clamps, or painter’s tape with CA glue to keep narrow speed trails secure during final passes.

5. Assembly & Finishing: Hand-sand edges with 220-grit sandpaper, apply wood stain or paint, attach the optional backer panel, and install wall mounting hardware.

Machine Compatibility & Included File Formats

The downloadable zip archive contains universal digital vector formats ready for cutting software:

• SVG: Compatible with LightBurn, Inkscape, Adobe Illustrator, Cricut Design Space, and xTool Creative Space.

• DXF: Formatted for AutoCAD, Vectric VCarve Pro / Aspire, Fusion 360, Torchmate, and CNC motion controllers.

• EPS: Optimized for CorelDRAW, Roland, and commercial vinyl/plasma plotters.

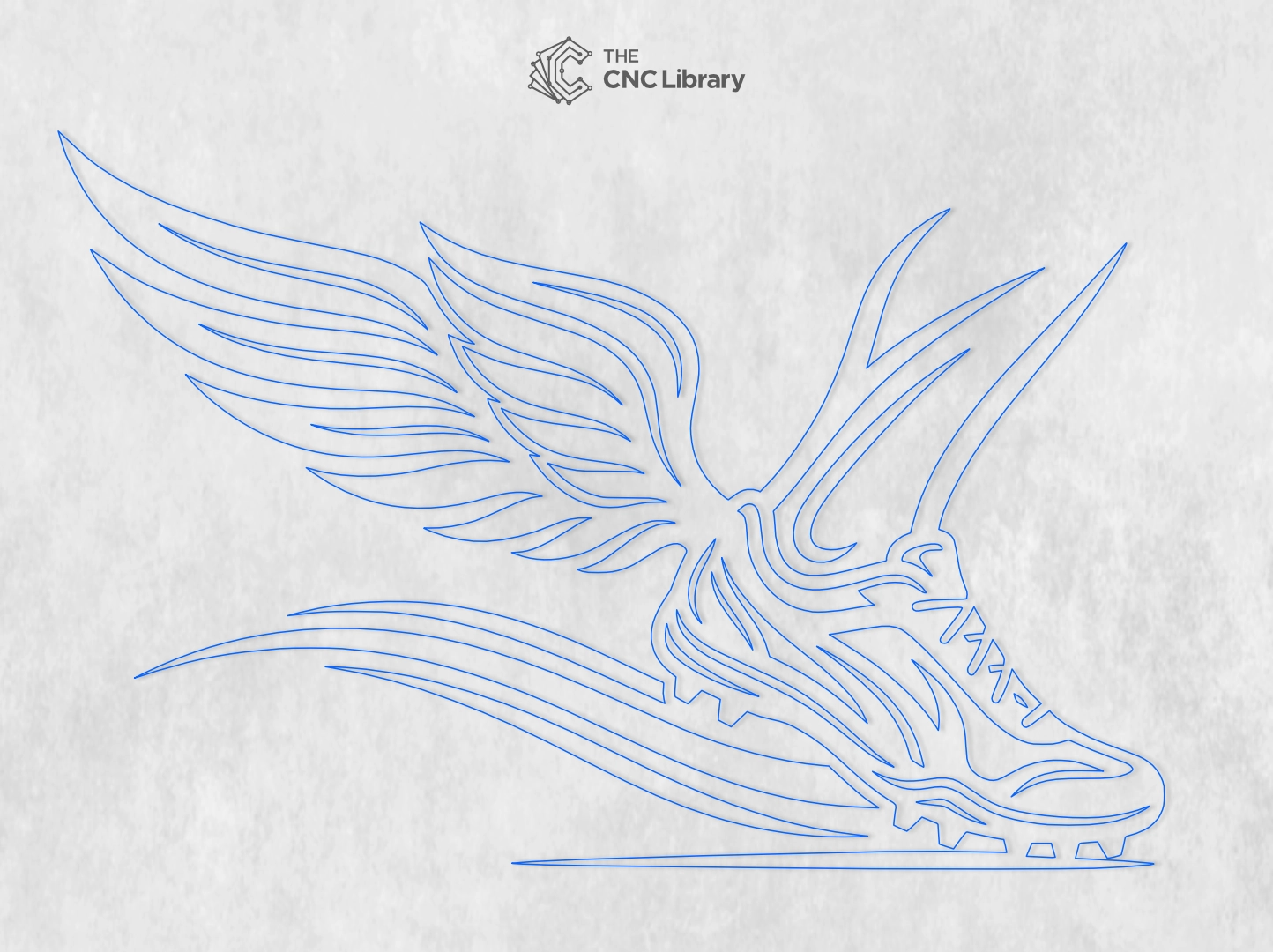

• PDF: Full-scale vector blueprint for client previews, printing, or manual scroll saw cutting.

Commercial License & Usage Terms

• Commercial License Included: Your purchase includes a commercial license allowing small businesses and workshops to make and sell up to 500 physical finished products per year at local craft shows, sports shops, or online stores.

• Digital Copyright Protection: You MAY NOT share, sub-license, resell, distribute, or re-upload the digital vector files (SVG, DXF, EPS, PDF) or modified derivative files to any cloud drive or online marketplace.

• Digital Purchase Notice: This listing is for an instant digital vector download. No physical wooden or metal product will be shipped.
